Customized GaN 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Drone protection outdroos

Product Categories
Amplifier module
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized GaN 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Drone protection outdroos

Brand Name : TX TELSIG

Model Number : TX-B10H-Silver

Certification : SGS,ISO9001,CE,FCC,ROHS

Place of Origin : China

MOQ : 1

Price : Negotiated

Payment Terms : T/T,Paypal, Etc.

Supply Ability : 100,000pcs/month

Delivery Time : In 2 day

Packaging Details : Kraft paper box with protection foam

Size : 132*53*17mm

Weight : 0.2kg

Frequency : Customized

Work Temperature : -20~+70℃

Max Output Power : 50w

Work Voltage : DC28v

Max Gain : 47dB

Flatness : ±1dB

Max Current : 4A

Output VSWR : ≤1.5

Output Connector : SMA

Power Amplifier Efficiency : 45(when Max Output)

Switch Control : high low level current

Standing Wave Protection : OK

Contact Now

5725~5850MHz 50W Anti-Drone Moudle

1.Product Description

The TX60100 - 5800MHz 28V 100W anti-drone power amplifier moudle is specifically developed for 5 . 8GHz anti drone applications . This is a high-power, high-efficiency, and highly reliability product with internal low-temperature drift VCO and small signal control switch, which has good anti jamming effect for frequency hopping

drones . It has a built-in isolator that can provide standing wave protection function .

2. Electrical Characteristics

Characteristics Min. Typ. Max. Unit Conditions
Frequency 5725 5850 MHz
Output Power 50.2 50.5 51.0 dBm
Operating Voltage 28 32 V
Operating Current 7.6 A
Efficiency 55 %
Power Gain / dB Amplifier application

3. Interface Definition

Interface Description Connector type Electrical Characteristics
RFIN RF signal input (power amplifier application) SMA 50Ω
RFOUT RF signal output SMA 50Ω
VCC Supply Voltage feed-through capacitor +28V±1V
VEN Enable signal (optional) feed-through capacitor +1V～+28V

4. Working and storage environment requirements

a) Temperature :-40～+70℃;

b) Working Relative Humidity :5%～95% , No condensation；

c) Atmospheric pressure :(70～106)kPa；

d) Storage temperature :-40～+125℃;

e) Storage Humidity:5%～98% , No condensation.

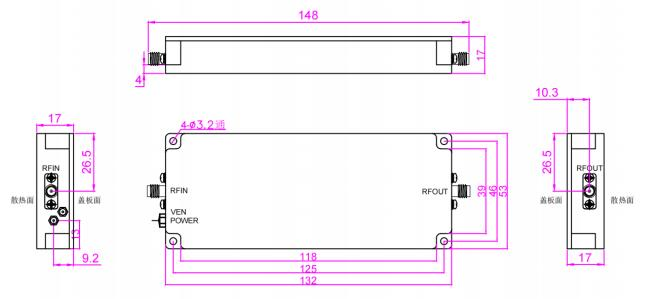

5. Size (Unit: mm)

Customized GaN 433mhz 800mhz 900mhz 2.4ghz 28V RF 50W drone FPV jammer module Drone protection outdroos
